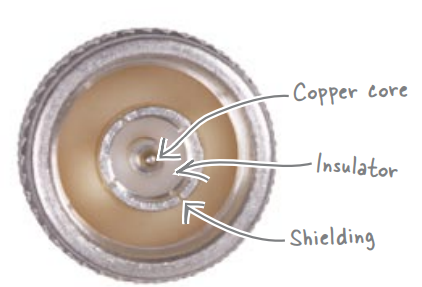

Coaxial Cables (Bayonet Neil Concelman (BNC))

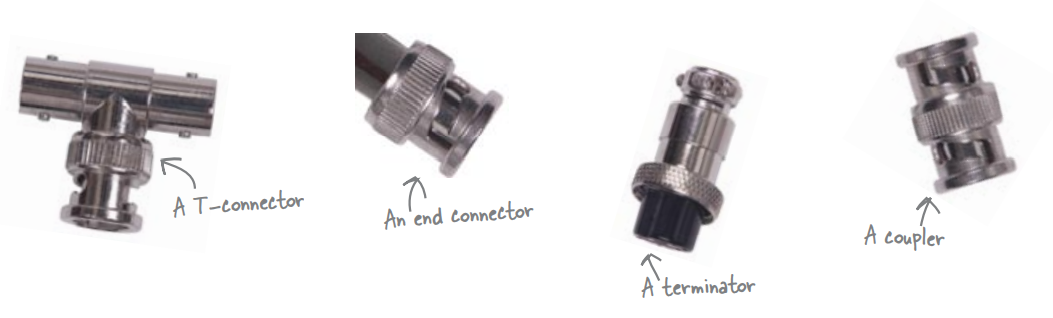

Coaxial Terminator, Coaxial T-Connector

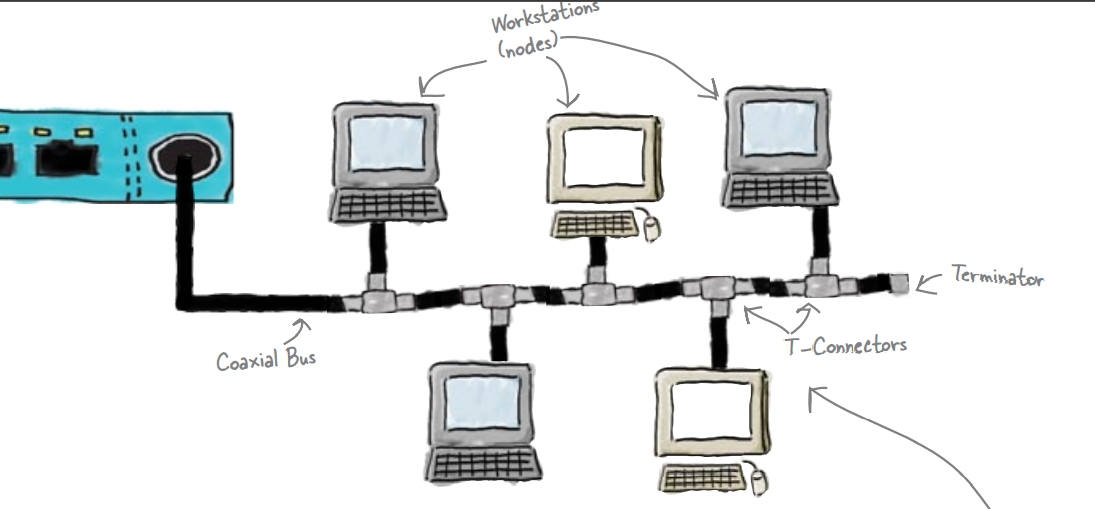

Coaxial networks(RG-62 networks)

• Each workstation on the network or node.
• The T-Connector attaches the node’s network cable to the main bus. If the bus is broken, unterminated, or has a broken T-Connector, the entire network will go down.
• We call these structural ideas network topologies.
